Product Overview

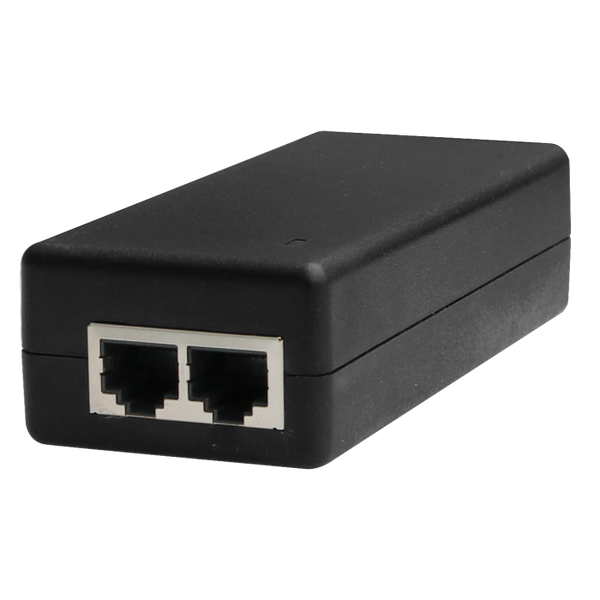

WI-TEK Gigabit Hi-POE Injector 60W IEEE 802.3af/at/bt compliant
Ultra PoE (60W), perfect for singular standalone devices or where you only have a network switch for data connectivity but require power to a device, injectors enable you to ‘inject’ power into the cable to the device up to 100m away, ideal where there isn’t any local DC power available. Specs include:
• 2*1000Mbps RJ45 Ports with 1 PoE
• IEEE 802.3af/at/bt compliant
• Delivers power up to 100 meters
• Auto-determine the necessary power requirements
• Plug-and-Play, requires no configuration
• AC power via figure 8 kettle lead.
|
Interface |
2 100/1000Mbps RJ45 Ports |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
|
Fan Quantity |
Fanless |
|
PoE PIN |
1,2,4,5+ 3,6,7,8- |
|
PoE Consumption |
52V 60W |
|
LED Indicator |
PWR |
|
Dimensions ( W x D x H ) |
113*50*30 mm |
|
Backbound Bandwidth |
2Gbps |
