Product Overview

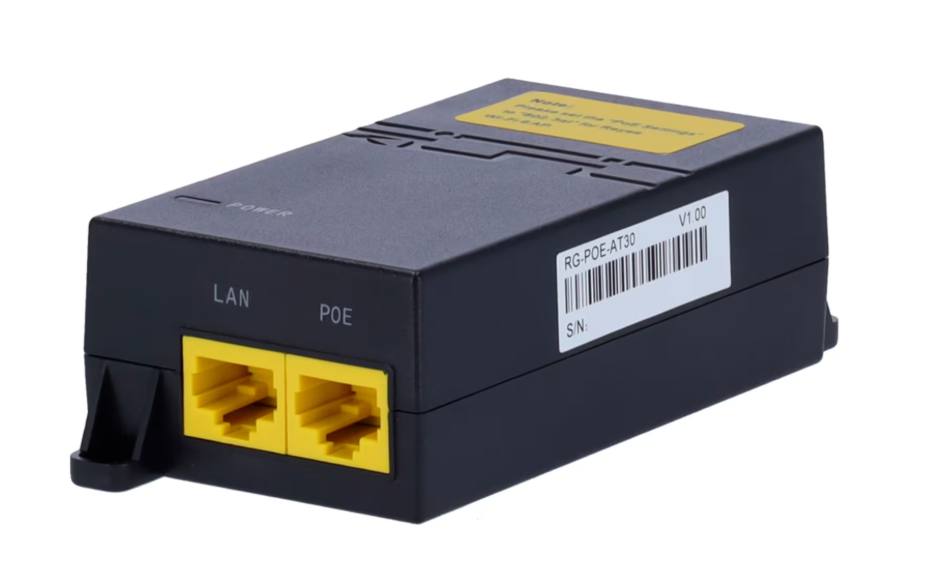

Ruijie Reyee RG-POE-AT30 1-Port Gigabit PoE Injector Adapter (1000Base-T, 52V, 31.2W)
| Specification | |
| Dimensions | 95.2 x 52.2 x 33.2±1 mm |
| Weight | 145±5g (5.11 Oz) |
| Output Voltage | 52V DC @ 0.3A |
| Gigabit LAN Port | 1G |
| Remote Reset Capability | No |
| Reset Button | No |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.7A (Max) |
| Inrush Current | 100A@230Vac |
| Efficiency | 87.06% |
| Output Ripple | =200mVp-p |
| Switching Frequency | 65KHZ |
| Line Regulation | =5% |
| Load Regulation | =5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | NA |
| Operating Temperature | ï¹£10„ƒ TO 45„ƒ(14 to 113° F) |
| Storage Temperature | ï¹£40 to 70°C (ï¹£40 to 158° F) |
| Operating Humidity | 5~95% Non-condensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
