Product Description

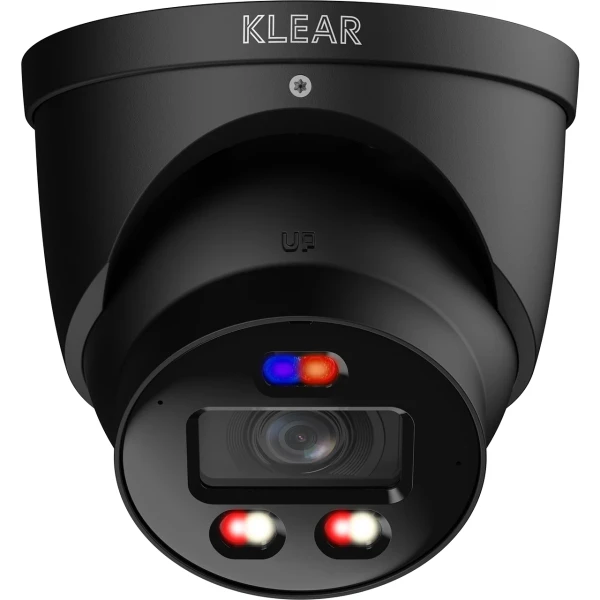

Klear 8MP IP AIO Eyeball, 30m Hybrid Colour & IR, Black, SMD, 2-Way Audio, Speaker, Siren, Strobe, AcuPick
-
- 1/1.8" 8MP 3840x2160 Progressive CMOS Sensor
- KlearVu Hybrid IR+White LED up to 30m
- 2-Way Talk: Built-in Microphone + Speaker
- Siren + Red/Blue LED Strobe
- 2.8mm Fixed Lens, Horizontal FOV 109°
- 0.0008 Lux @ F1.0 (Colour); 0.0004 Lux @ F1.0 (B/W)
- Smart Motion Detection (Human and Vehicle Detection)
- AcuPick in Live/Playback: highlight your Human/Vehicle target and search will be based on Video Metadata attributes (requires Klear AcuPick NVR)
- IP67, H.265+
Specifications
Camera Image Sensor 1/1.8" CMOS Max. Resolution 3840 (H) × 2160 (V) ROM 256 MB RAM 2 G Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.0008 Lux@F1.0 (Color, 30IRE) 0.0004 Lux@F1.0 (B/W, 30IRE) 0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) Illuminator On/Off Control Auto;Manual Illuminator Number 2 (Multi-core (IR + warm) light) Angle Adjustment Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° Lens Lens Type Fixed-focal Lens Mount M16 Focal Length 2.8 mm; 3.6 mm Max. Aperture F1.0 Field of View 2.8 mm: H: 109°; V: 59°; D: 131° Iris Control Fixed Close Focus Distance 2.8 mm: 2.1 m (6.89 ft) DORI Distance Detect Observe Recognize Identify 82.0 m 32.8 m 16.4 m 8.2 m (269.03 ft) (107.64 ft) (53.81 ft) (26.90 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Intelligence IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) SMD SMD 4.0 AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. AI SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) Smart Codec Smart H.265+; Smart H.264+ AI Coding AI H.265 (Compression rate ≥25%) AI H.264 (Compression rate ≥25%) Video Frame Rate Main stream: 3840 × 2160@(1 fps–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 3 streams Resolution 8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR/ABR Video Bit Rate H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB Scene Self-adaptation (SSA) Yes White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Auto Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Smart Illumination Yes Smart Dual Light Yes Defog Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) Mirror Yes Privacy Masking 8 areas LDC Yes Audio Built-in MIC Yes, built-in dual Mic Built-in Speaker Yes, built-in speaker Audio Compression PCM; G.711a; G.711Mu; G.726; G.723 Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception Network Network Port RJ-45 (10/100 Base-T) SDK and API Yes Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P Interoperability ONVIF (Profile S; Profile G;Profile T); CGI User/Host 20 (Total bandwidth: 64 M) Storage FTP;SFTP; Micro SD card (support max. 512 GB); NAS Browser IE: IE11 Chrome Firefox Management Software Smart PSS Lite; DSS; DMSS; DoLynk Care Mobile Client iOS;Android Cyber Security Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog; HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade Certification Certifications CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU Port Audio Input 1 channel (RCA port) Audio Output 1 channel (RCA port) Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC Alarm Output 1 channel out: wet contact, 300 mA 12 VDC Power Power Supply 12 VDC; PoE Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. Power Consumption Basic: 4.1 W (12 VDC); 6 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.2 W (12 VDC); 10 W (PoE) Environment Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity ≤95% Protection IP67 Structure Casing Material Metal Product Dimensions Φ122.0 mm × 116.1 mm (4.80" × Φ4.57") Net Weight 0.8 kg (1.76 lb) Gross Weight 1.0 kg (2.20 lb)
**Specifiactions subject to change without prior notice Images may differ from actual product E&OE
**Specifications subject to change without prior notice.
