Product Description

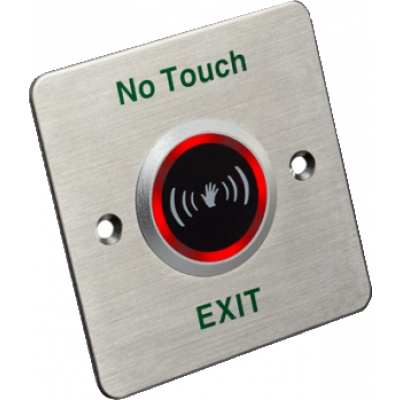

Hikvision DS-K7P03 Contactless Exit Button
- Dimension (L x W x H) 86 x 86 x 25.7mm (3.39" x 3.39 x 1.01")
- Input voltage: 12V DC
- Working current: 40 mA (standby), 70mA (working)
- Current rating: 1 A@30 VDC
- Outout contact: NO/NC/COM contact
- Panel: Stainless steel
- Aging test: Already passed 1 million times aging test
- Suitable doors: All kindss of narrow doorframes
- Working Temperature: -20ºC to 50ºC (-4ºF to 122ºF)
- Working humidity: 0 to 95% (relative humnidity)
- Detection range (adjustable): 40mm to 120mm (1.57 to 4.72")
- Time delay: 1 to 25s (adjustable)
- LED indicator status: Green/red LED indicates working/standby
- Product weight: 0.2kg (0.44lb)
