Product Overview

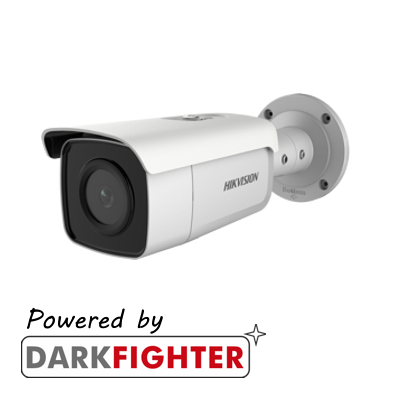

Hikvision DS-2CD2T85G1-I5 8MP IP Bullet Camera 4mm Lens EXIR Upto 50M Range
Hikvision 8MP fixed lens bullet camera with IR.
- 8MP high resolution (4K)
- 4mm fixed lens
- Powered by Darkfighter for Ultra Low Light
- Triple stream
- Up to 50m IR distance
- H.265+ compression
- 4 analytics
- IP67 weatherproof
- 120dB wide dynamic range
- Supports on board storage (up to 128GB)
- 12V DC & PoE (802.3af)
| Compression Standard | ||
|---|---|---|
| Video bit rate: | 32Kbps~16Mbps | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
| Frame Rate: | 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
|
| Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) |
|
| Image Enhancement: | BLC/3D DNR/ROI/HLC | |
| Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser | |
| ROI: | Support 1 fixed region for main stream and sub stream separately | |
| Day/Night Switch: | Day/Night/Auto/Schedule | |
| Network | ||
|---|---|---|
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
| System Compatibility: | ONVIF (Profile S, Profile G), ISAPI | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Smart Feature-set | ||
|---|---|---|
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Consumption: | -I5: 12 VDC, 0.7 A, max: 9 W PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max: 11 W -I8: 12 VDC, 1 A, max: 11 W PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max: 12.9 W |
|
| Weather Proof: | IP67 | |
| Dimensions: | Camera: Φ105 × 289.5 mm (4.1″ × 11.4″) | |
| Weight: | Camera: 1000 g (2.2 lb.) With package: 1500 g (3.3 lb.) |
|
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2" Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON) | |
| Slow shutter: | Support | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Lens: | 4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92° |
|
| Lens Mount: | M16 | |
| Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Product Type | Camera |
|---|---|
| Lens | 4mm Fixed Lens |
| Megapixel | 8MP |
| Max Resolution | 3840 x 2160 |
| IR Range | 50m |
| Internal / External | External |
| IP Rating | IP67 |
| WDR | Yes |
| Vandal Resistant | No |
| Power | 12V DC & PoE (802.3af) |
| Manufacturer | Hikvision |
