Product Description

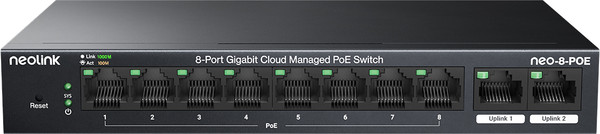

8-Port Gigabit POE Ethernet Switch 8 x 10/100/1000Mbps POE ports & 2 x Uplink Ports Cloud Level 2 Managed
NEO-8-POE
8-Port Gigabit PoE+ & 2-Uplink
Layer-2 Managed Cloud Switch
- 102W 250m PoE+
- 802.3af/at up to 30W each port
- 1000 Mbps All Ports
- 10x the speed of 10/100 Fast Ethernet
- Cloud Level-2 Management
- Remotely control PoE+ ports, QVLAN, Web/APP & more
- Galvanized Steel Casing
- For heat dissipation & durability
Specifications
- Gigabit Ports: 8x PoE+, 2x Uplink
- Forwarding Mode: Store-and-forward
- Bandwidth: 20 Gbps (non-blocking)
- Standards: IEEE 802.3ab/u/x/z, IEEE 802.1d/p/q/w
- PoE Standards: IEEE 802.3af/at
- MAC Address Table: 16K
- Packet Forwarding Rate: 14.90 Mpps
- Buffer Memory: 2 Mb
- Jumbo Frame: 9K
- Protection: Lightning ≥6kV, ESD, Air discharge: ±8kV, Contact discharge: ±4kV
- Cloud Management: PoE configuration & control, Status, Web/APP & more
- MAC Address Binding
- VLAN: 802.1Q
- Port Mirroring: N: 1
- Loop Guard
- Each port supports auto MDI/MDIX, auto-negotiation of duplex mode and rate
- Supports flow control in IEEE 802.3x full duplex and Backpressure half duplex
- Operating Temperature: -10°C ~ 45°C (14F ~ 113F)
- Power: DC 51V 1.25A
- Power consumption: <102W (with PoE)
- Dimensions (W x D x H): 177.5 x 104 x 26 mm
**Specifications subject to change without prior notice. Pictures may differ from actual product. E&OE
