Product Description

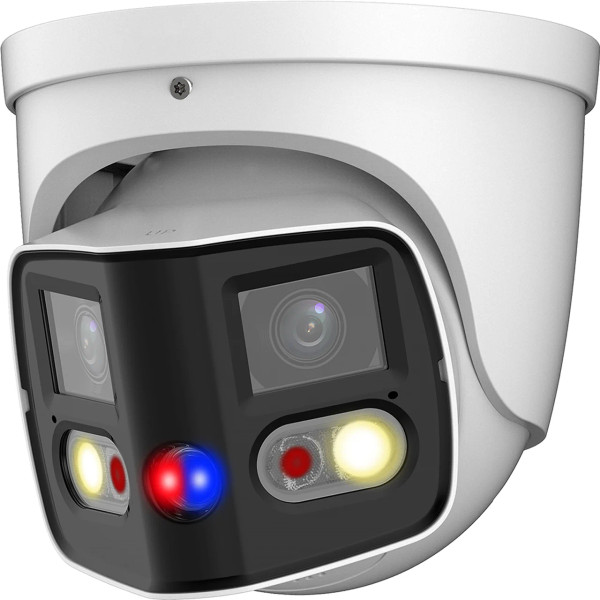

Klear 8MP IP AIO Panoramic Eyeball, 25m Hybrid (Colour+IR), SMD, 2-Way Audio, Speaker, Siren, Strobe
- Dual 1/2.7" 4MP (Total: 8MP 4096x1860) Progressive CMOS Sensor
- KlearVu Hybrid IR+White LED up to 25m
- 2-Way Talk: Built-in Microphone + Speaker
- Siren + Red/Blue LED Strobe
- 2.8mm Fixed Lens, Horizontal FOV 180°
- 0.005 Lux @ F1.4 (Colour); 0.0005 Lux @ F1.4 (B/W)
- Smart Motion Detection (Human and Vehicle Detection)
- QuickPick in Live/Playback: highlight your Human/Vehicle target and search will be based on clothing/vehicle colour (requires Klear QuickPick NVR)
- IP67, H.265+
Specifications
| Camera | |||||
| Image Sensor | Dual 1/2.7" CMOS | ||||
| Max. Resolution | 4096 (H) × 1860 (V) | ||||
| ROM | 128 MB | ||||
| RAM | 1 GB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||
| Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE) | ||||
| 0.0005 lux@F1.4 (B/W, 30 IRE) | |||||
| 0 lux (Illuminator on) | |||||
| S/N Ratio | >56 dB | ||||
| Illumination Distance | Up to 25 m (82.02 ft) (IR LED) | ||||
| Up to 20 m (65.62 ft) (Warm light) | |||||
| Illuminator On/Off Control | Auto; Manual | ||||
| Illuminator Number | 2 (IR LED); 2 (Warm light) | ||||
| Angle Adjustment | Pan: 0°–360° | ||||
| Tilt: 0°–77° | |||||
| Rotation: 0°–360° | |||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Focal Length | 2.8 mm | ||||
| Field of View | Horizontal: 180°; Vertical: 86° | ||||
| Max. Aperture | F1.4 | ||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 0.8 m (2.62 ft) | ||||
| DORI Distance | Detect | Observe | Recognize | Identify | |
| 50.6 m (166.01 ft) | 20.2 m | 10.1 m | 5.1 m | ||
| (66.27 ft) | (33.14 ft) | (16.73 ft) | |||
| Intelligence | |||||
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) | ||||
| SMD | SMD 4.0 | ||||
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events. | ||||
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. | ||||
| EPTZ | Enlarge and track the targets of intelligent alarms | ||||
| Video | |||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||
| Smart Codec | Smart H.265+; | ||||
| Smart H.264+ | |||||
| AI Coding | AI H.265; | ||||
| AI H.264 | |||||
| Video Frame Rate | Main stream: 4096 × 1860@(1–20 fps ) | ||||
| Sub stream: 1200 × 530@(1–20 fps) | |||||
| Third stream: 1920 × 860@(1–20 fps) | |||||
| *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | |||||
| Stream Capability | 3 streams | ||||
| Resolution | 4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432 | ||||
| Bit Rate Control | CBR/VBR | ||||
| Video Bit Rate | H.264: 6 kbps –16384 kbps | ||||
| H.265: 6 kbps –16384 kbps | |||||
| Day/Night | Auto(ICR)/Color/B/W | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| WDR | 120 dB | ||||
| Scene Self-adaptation (SSA) | Yes | ||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||
| Gain Control | Auto | ||||
| Noise Reduction | 3D NR | ||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||
| Region of Interest (RoI) | Yes (4 areas) | ||||
| Privacy Masking | 4 areas | ||||
| Defog | Yes | ||||
| Audio | |||||
| Built-in MIC | Yes, built-in dual Mic | ||||
| Built-in speaker | Yes, built-in speaker | ||||
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | ||||
| Alarm | |||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception | ||||
| Network | |||||
| Network Port | RJ-45 (10/100 Base-T) | ||||
| SDK and API | Yes | ||||
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade | ||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P | ||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI | ||||
| User/Host | 20 (Total bandwidth: 64 M) | ||||
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS | ||||
| Browser | IE: IE 8 and later | ||||
| Chrome | |||||
| Firefox | |||||
| Management Software | Smart PSS Lite; DSS; DMSS | ||||
| Mobile Client | iOS; Android | ||||
| Certification | |||||
| Certifications | CE-LVD: EN62368-1 | ||||
| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | |||||
| Port | |||||
| Audio Input | 1 channel (RCA port) | ||||
| Audio Output | 1 channel (RCA port) | ||||
| Alarm Input | 1 channel in: wet contact, 5 mA 3 V–5 VDC | ||||
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC | ||||
| Power | |||||
| Power Supply | 12 VDC (±30%); PoE (802.3af) | ||||
| Power Consumption | Basic: 3.95 W (12 VDC); 4.95 W (PoE) | ||||
| Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.7 W (12 VDC); 10.85 W (PoE) | |||||
| Environment | |||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
| Operating Humidity | ≤95% | ||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
| Protection | IP67 | ||||
| Structure | |||||
| Casing | Metal | ||||
| Product Dimensions | Φ122 mm × 135.2 mm (Φ4.80" × 5.32" ) | ||||
| Net Weight | 990 g (2.18 lb) | ||||
| Gross Weight | 1150 g (2.54 lb) | ||||
**Specifiactions subject to change without prior notice Images may differ from actual product E&OE
