Product Overview
Mega Deal Once They're Gone They're Gone.

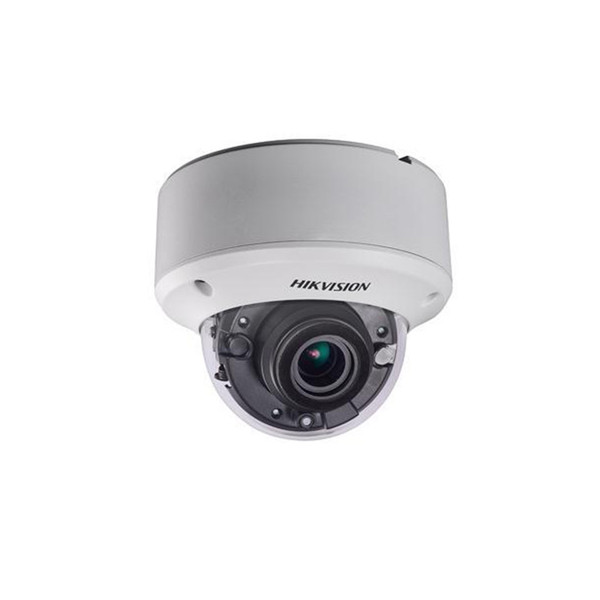

HIKVision Turbo HD 3.0 3MP Motorised Vari-Focal 2.8mm-12mm Lens EXIR Dome CCTV Camera DS-2CE56F7T-AVPIT3Z IP66 IK10 Weatherproof
HIKVision Turbo HD 3MP Motorised Vari-Focal EXIR Dome Camera, HD1080P, 3MP CMOS Image Sensor, 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR, 2.8 - 12 mm @ F1.2, Up to 40 m IR Range, 1920 x 1536: 18fps, Smart IR, DNR, TDN, True WDR up to 120dB, OSD Menu (up the coax), IP66, IK10, 24VAC/12VDC
DS-2CE56F7T-(A)VPIT3Z
3MP WDR Motorized VF Vandal Proof EXIR Dome Camera
• 3 Megapixel high-performance CMOS
• Analog HD output, up to 3MP resolution
• 2.8-12mm motorized vari-focal lens
• True Day/Night
• OSD menu, DNR, Smart IR
• True WDR, up to 120dB
• EXIR technology, up to 40m IR distance
• IP66 weatherproof & vandal proof
• Up the Coax(HIKVISION-C)
| Camera | ||
|---|---|---|
| Image Sensor: | | | 3MP CMOS Image Sensor |
| Signal System: | | | PAL/NTSC |
| Effective Pixels: | | | 2052(H)*1536(V) |
| Min. Illumination: | | | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time: | | | 1/25(1/30) s to 1/50,000 s |
| Lens: | | | Motorized VF lens; 2.8 - 12 mm @F1.2 Angel of view: 26.8°-83° |
| Lens Mount: | | | φ14 |
| Adjustment Range: | | | Pan: 0 - 340°, Tilt: 0 - 75°, Rotation: 0 - 355° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120dB |
| Video Frame Rate: | | | 1920 ×1536@18fps |
| HD Video Output: | | | 1 Analog HD output |
| Synchronization: | | | Internal Synchronization |
| S/N Ratio: | | | More than 62 dB |
| Up the Coax: | | | Support |
| Menu | ||
| Auto White Balance: | | | Auto/MWB |
| BLC: | | | Support |
| AGC: | | | Support |
| Language: | | | English/Chinese |
| Function: | | | Wide Dynamic Range; Digital Noise reduction; Mirror; SMART IR |
| General | ||
| Operating Conditions: | | | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | | | 12 VDC±15% -A: 12 VDC±15%, 24 VAC±15% |
| Power Consumption: | | | Max. 4.5W -A: Max. 6.5W |
| Impact Protection: | | | IK10. |
| Weather Proof: | | | IP66 |
| IR Range: | | | Up to 40m |
| Communication : | | | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | | | φ145.2mm×124.1mm (φ5.72”×4.89”) |
| Weight: | | | 1600g ( 3.53lb) |
