Product Overview

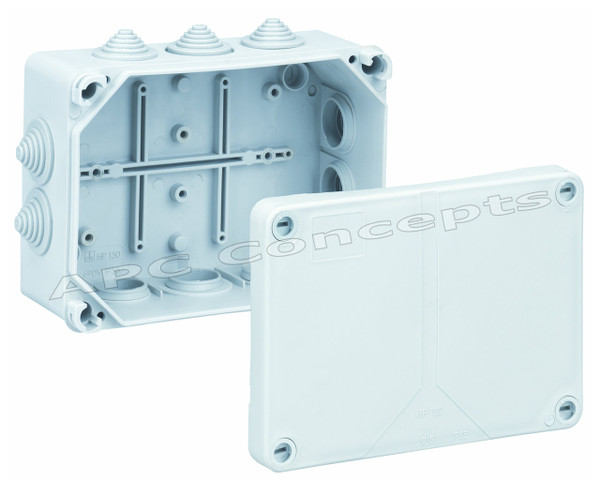

IP55 WEATHER PROOF EMPTY ENCLOSURE
HP 150-L
Junction box 164 x 119 x 77 mm
Junction box, Ui=690V, 10 recessed stepped nipples, seal range 5 - 21 mm
grey, without terminals
IP55 Rated
Technical data
Measures:
- Width:
- 164 mm
- Length:
- 119 mm
- Height:
- 77 mm
- Inner height:
- 70 mm
- Inner width:
- 155 mm
Material:
- Base:
- polypropylene, flame-retardent
- Cover:
- polypropylene, flame-retardent
Other attributes:
- Equiqment:
- None
- Entries:
- 11
- Tackable:
- No
- Rated insulation voltage AC:
- 690 V
- Explosion safety:
- none
- Fire protection:
- none
- sealable:
- No
- Weatherproof:
- No
- Heavy metals-free:
- Yes
- PVC-free:
- Yes
- Silicone-free:
- Yes
- Ingress protection:
- IP55 - acc. EN 60529 / DIN VDE 0470-1
Environmental attributes:
- Ambient temperature (min.):
- -25 °C
- Ambient temperature (max.):
- 40 °C
- Ambient temperature (24 h):
- 35 °C
- Max. rel. humidity at 25° C (short Therm):
- 95%
- Max. rel. humidity at 40° C:
- 50%
